Mini PCI Socket
Our mini PCI and mini PCIe connectors were designed to provide a standardized interface for adding expansion cards to computer systems. These connectors offer a compact form factor. The 114B series mini PCI interface uses a 32-bit, 33 MHz data bus and has 3.3 V or 5 V power connections, totaling 124 pins. Both mini PCI and mini PCIe connectors are typically used for adding expansion cards such as Wi-Fi, Bluetooth®, mobile network, and SSD.

Key Features:

4.0 mm and 9.2 mm heights available
Compatible transfer rate of 133 MB/s for 32-bit, 33 MHz
The retention latch is all-in-one on the connector

Applications:

Box PCs
Edge computing
Industrial PCs
Embedded systems

Mini PCI Socket

Image	Part number	Description	More info
	114B-92B00-R02	Mini PCI Connector, H=9.2mm	View

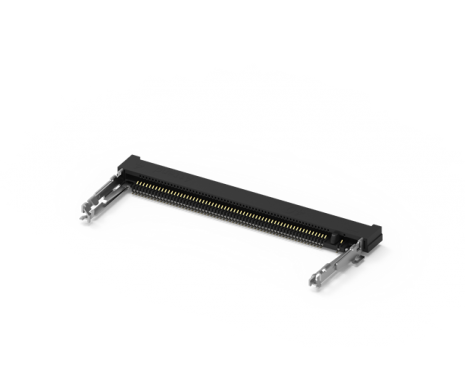

	114B-40B00-R02	Mini PCI Connector, H=4.0mm	View
