Mini PCI Express Socket
Our mini PCI and mini PCIe connectors were designed to provide a standardized interface for adding expansion cards to computer systems. These connectors offer a compact form factor. The 119A series mini PCIe connector follows the PCI Express standard, providing a high-speed data transfer interface with one differential transmit pair and one differential receive pair. It has 1.5 V or 3.3 V power connections, totaling 52 pins. Both mini PCI and mini PCIe connectors are typically used for adding expansion cards such as Wi-Fi, Bluetooth®, mobile network, and SSD.

Mini PCI Express Socket

Image	Part number	Description	More info
	119A-99A00-R02	Mini PCIExpress, H=9.9mm	View
	119A-92A00-R02	Mini PCIExpress, H=9.2mm	View

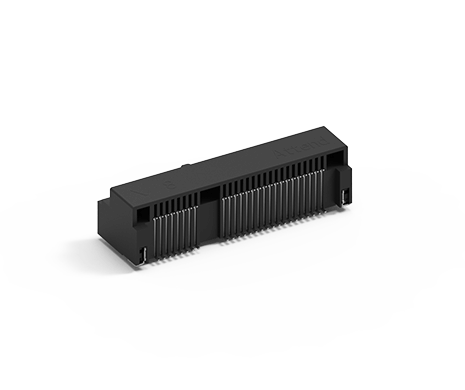

	119A-80A00-R02	Mini PCIExpress, H=8.0mm	View

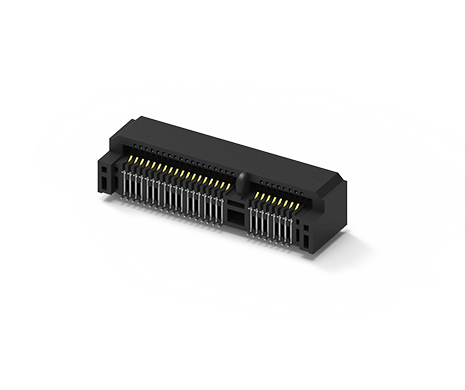

	119A-70A00-R02	Mini PCIExpress, H=7.0mm	View
	119A-56A00-R02	Mini PCIExpress, H=5.6mm	View
	119A-40A00-R02	Mini PCIExpress, H=4.0mm	View
