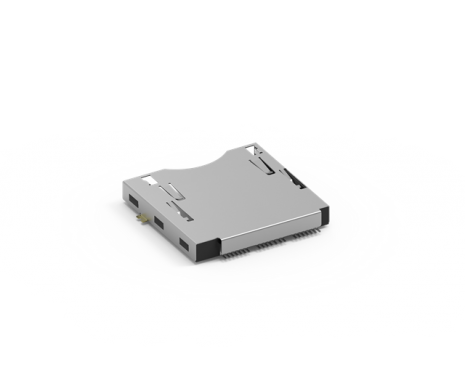

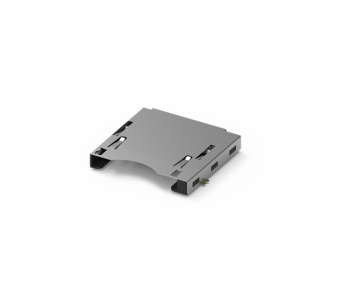

CFexpress Type B Host Socket | Push-Pull Type | 2,000 MB/s | 101M-TE20

Products > Connector Solution > CFexpress Socket > CFexpress Type B Host Socket | Push-Pull Type | 2,000 MB/s | 101M-TE20

Part number # 101M-TE20

Supplier: ATTEND Technology Inc.
Part number: 101M-TE20
Description: CFexpress Type B Host Socket, Push-Pull Type, 15u”

Contact us today for pricing, stock availability, and sample requests!

Contact

Relevant post:

TBA

Specification

Download

Current Rating0.5A
Voltage Rating5VDC
Contact Resistance30mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
Operating temperature range-25℃~+85℃
Recommended IR Reflow Temperature260℃

Datasheet PDF File (263 KB)
 Drawing PDF File (99 KB)
3D RAR File (228 KB)

Main Features

  • Type B host socket compatible PCIe Gen3 x2 (2,000 MB/s)
  • Push-push and push-pull options are available with or without a lock and are suitable for many applications

Application

  • Industrial equipment
  • In-vehicle computers
  • Digital cinema cameras
  • High-end DSLRs
  • Recorders
