CFast Socket | Vertical Type, w/Lock | Compatible with CFast 1.0/1.1 (300 MB/s) and CFast 2.0 (600 MB/s) | 120E-1G00

Products > Connector Solution > CFast [CompactFast] Socket > CFast Socket | Vertical Type, w/Lock | Compatible with CFast 1.0/1.1 (300 MB/s) and CFast 2.0 (600 MB/s) | 120E-1G00

Part number # 120E-1G00

Supplier: ATTEND Technology Inc.
Part number: 120E-1G00

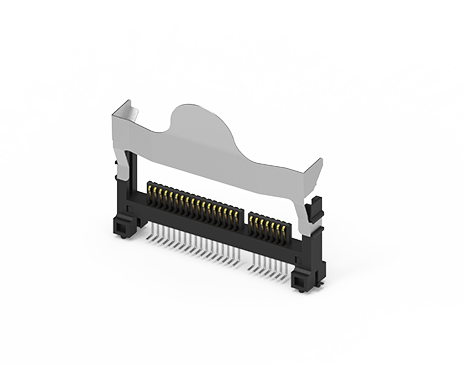

Description: CFAST Socket, Vertical Type, with Lock, SMT, 30u”

Contact us today for pricing, stock availability, and sample requests!

Contact

Relevant post:

TBA

Specification

Download

Current Rating1.5A
Voltage Rating30V AC/DC
Contact Resistance30mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
Durability10,000 Cycle
Insertion Force28N max.
Extraction Force3.7N~24.5N max.
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
Recommended IR Reflow Temperature260℃

Drawing PDF File (203 KB)
 3D RAR File (417 KB)

Main Features

  • Compatible two standard CFast 1.0/1.1 (300 MB/s) and CFast 2.0 (600 MB/s)
  • Many various types available, including push-pull, slim, and vertical types
  • 7 pins for signal transmission and 17 pins for power and control, resulting in a total of 24 pins

Application

  • Industrial equipment
  • In-vehicle computers
  • Digital cinema cameras
  • High-end DSLRs
  • Recorders
