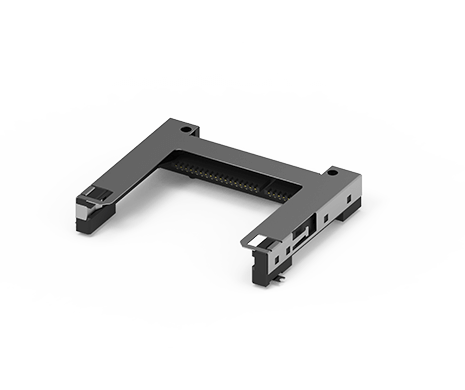

CFast Socket | Push-Push Type | H=8.35mm | Compatible with CFast 1.0/1.1 (300 MB/s) and CFast 2.0 (600 MB/s) | 120C-835D00

Products > Connector Solution > CFast [CompactFast] Socket > CFast Socket | Push-Push Type | H=8.35mm | Compatible with CFast 1.0/1.1 (300 MB/s) and CFast 2.0 (600 MB/s) | 120C-835D00

Part number # 120C-835D00

Supplier: ATTEND Technology Inc.
Part number: 120C-835D00
Description: CFAST Socket, Push-Push Type, H=8.35mm, 10u”

Contact us today for pricing, stock availability, and sample requests!

Contact

Relevant post:

TBA

Specification

Download

Current Rating1.5A
Voltage Rating100V AC/DC
Contact Resistance30mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500V DC
Durability10,000 Cycle
Insertion Force28.8N max.
Extraction Force3.7~24.5N max.
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
Recommended IR Reflow Temperature260℃

Datasheet PDF File (308 KB)
 Drawing PDF File (149 KB )
 3D RAR File (182 KB)

Main Features

  • Compatible two standard CFast 1.0/1.1 (300 MB/s) and CFast 2.0 (600 MB/s)
  • Many various types available, including push-pull, slim, and vertical types
  • 7 pins for signal transmission and 17 pins for power and control, resulting in a total of 24 pins

Application

  • Industrial equipment
  • In-vehicle computers
  • Digital cinema cameras
  • High-end DSLRs
  • Recorders
