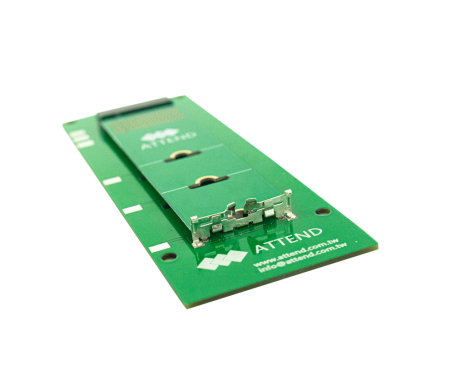

M.2 Connector M Key, H=5.8mm, Gen4

Products > Connectors > PCB Card Socket > M.2 (NGFF) Connector > M.2: M Key > M.2 Connector M Key, H=5.8mm, Gen4

Part number # 123A-58M01

SupplierATTEND Technology
Part number 123A-58M01
Description M.2 Connector, M Key, H=5.8mm, Gen4, 0.5 Pitch, GF
Datasheet PDF File (348 KB)
Drawing PDF File (215 KB)
3D RAR File (718 KB)

Contact us for quote, samples or more information

Contact us

ACCESSORIES:

123A-SCREW
123A-NUT-58
123A-58L1
Industrial PCs

APPLICATION:

  • Data storage
  • Servers
  • Industrial PCs
  • IoT

MAIN FEATURES:

*
  • Height range: 2.1 mm to 8.5 mm
  • A, B, E, and M keying options for module cards
  • One-action latch for time and cost savings
  • PCI-SIG PCIe M.2 specification compliant
  • 0.5 mm pitch featuring sixty-seven contact points

SPECIFICATION:

Current Rating0.5A per pin
Voltage Rating50VAC
Contact Resistance55mΩ, Δ20Ω Max.
Insulation Resistance500MΩ
Dielectric Withstanding Voltage300VAC
Durability60 Cycle
Mating Force20N max.
Un-mating Force20N max.
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
Recommended IR Reflow(Wave Soldering) Temperature260℃
