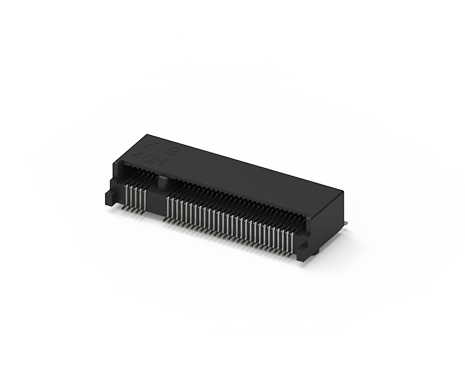

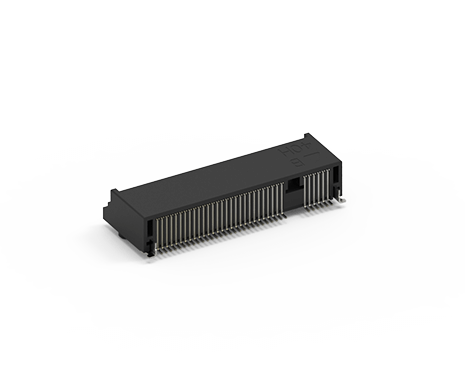

M.2 Connector B Key, H=4.0mm

Products > Connectors > PCB Card Socket > M.2 (NGFF) Connector > M.2: B Key > M.2 Connector B Key, H=4.0mm

Part number # 123A-40B00

SupplierATTEND Technology
Part number 123A-40B00
Description M.2 Connector, B Key, H=4.0mm, GF
Datasheet PDF File (344 KB)
Drawing PDF File (239 KB)
3D RAR File (1749 KB)

Contact us for quote, samples or more information

Contact us

ACCESSORIES:

123A-SCREW
123A-NUT-42

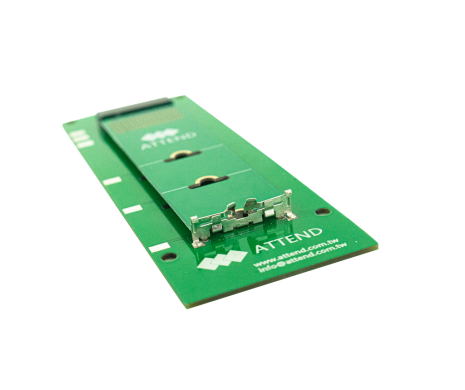

123A-40L1
Industrial PCs

APPLICATION:

  • Data storage
  • Servers
  • Industrial PCs
  • IoT

MAIN FEATURES:

*
  • Height range: 2.1 mm to 8.5 mm
  • A, B, E, and M keying options for module cards
  • One-action latch for time and cost savings
  • PCI-SIG PCIe M.2 specification compliant
  • 0.5 mm pitch featuring sixty-seven contact points

SPECIFICATION:

Current Rating0.5A per pin
Voltage Rating50VAC
Contact Resistance50mΩ Max
Insulation Resistance500MΩ Min
Dielectric Withstanding Voltage300VAC
Durability60 Cycle
Insertion Force20N max.
Extraction Force25N max.
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
Recommended IR Reflow(Wave Soldering) Temperature260℃
