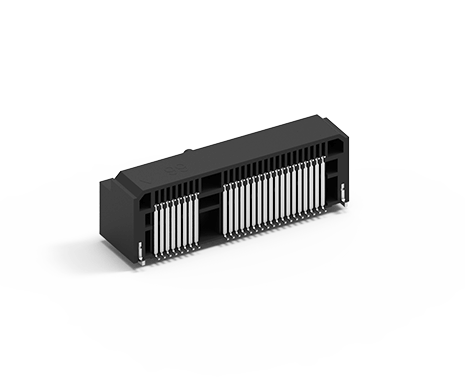

Mini PCIExpress, H=9.9mm

Products > Connectors > PCB Card Socket > Mini PCI Express Socket > Mini PCIExpress, H=9.9mm

Part number # 119A-99A00-R02

SupplierATTEND Technology
Part number 119A-99A00-R02
Description Mini PCIExpress, H=9.9mm, Top Mount, SMT Type
Datasheet PDF File (310 KB)
Drawing PDF File (603 KB) [Fixation by screw/nut]
3D RAR File (1197 KB)

Contact us for quote, samples or more information

Contact us

ACCESSORIES:

119A-SCREW-R02
119A-NUT-99-R02
*

APPLICATION:

  • Box PCs
  • Edge computing
  • Industrial PCs
  • Embedded systems

The Mini PCIe connector is widely applied in different industries, commonly used in wireless networking /Wifi device, ADSL modern, SSD storage, IP set-top box.


Multiple height options:

*

We offer multiple height options, from 4.0 mm to 9.9 mm standoff which provides a flexible design solution.

Multiple height options:

*

To maximize with customer requested, ATTEND offering multiple mounting options, with single latch, dual latch, and screw & nuts to fit with different design purposes.

  • Height range: 4.0 mm to 9.9 mm
  • Optional accessories include a single fixation latch, two dual fixation latches, or two nuts with two screws
  • The connector and latch are surface-mount devices
  • Compatible PCI Express 1.0 x1 (250 MB/s) and PCI Express 2.0 x1 (500 MB/s)

SPECIFICATION:

Current Rating0.5A per pin
Voltage Rating50V AC
Contact Resistance30mΩ
Insulation Resistance500MΩ
Dielectric Withstanding Voltage250V AC
Durability50 Cycle
Contact Normal Force50gf per pin Min.
Contact Retention Force180gf per pin Min.
Operating temperature range-40℃~+90℃
Storage temperature range-40℃~+90℃
Recommended IR-Refolw Temperature260℃
