Mini PCIExpress, H=4.0mm

Products > Connectors > PCB Card Socket > Mini PCI Express Socket > Mini PCIExpress, H=4.0mm

Part number # 119A-40A00-R02

SupplierATTEND Technology
Part number 119A-40A00-R02

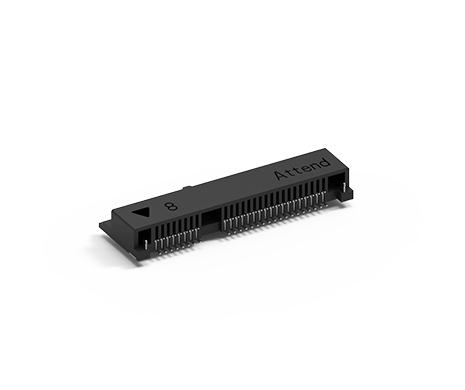

Description Mini PCIExpress, H=4.0mm, Top Mount, SMT Type
Datasheet PDF File (312 KB)
Drawing PDF File (277 KB)
3D RAR File (1287 KB)

Contact us for quote, samples or more information

Contact us

ACCESSORIES:

119A-SCREW-R02
119A-NUT-40-R02
119A-LATCH-40
119A-40LATCH
*

APPLICATION:

  • Box PCs
  • Edge computing
  • Industrial PCs
  • Embedded systems

The Mini PCIe connector is widely applied in different industries, commonly used in wireless networking /Wifi device, ADSL modern, SSD storage, IP set-top box.


Multiple mounting options:

*

We offer multiple height options, from 4.0 mm to 9.9 mm standoff which provides a flexible design solution.

Multiple height options:

*

To maximize with customer requested, ATTEND offering multiple mounting options, with single latch, dual latch, and screw & nuts to fit with different design purposes.

  • Height range: 4.0 mm to 9.9 mm
  • Optional accessories include a single fixation latch, two dual fixation latches, or two nuts with two screws
  • The connector and latch are surface-mount devices
  • Compatible PCI Express 1.0 x1 (250 MB/s) and PCI Express 2.0 x1 (500 MB/s)

SPECIFICATION:

Current Rating0.5A per pin
Voltage Rating50V DC
Contact Resistance55mΩ max.
Insulation Resistance500MΩ min.
Dielectric Withstanding Voltage300VAC
Durability100Cycle
Insertion Force2.3Kgf max.
Extraction Force2.3Kgf max.
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
Recommended IR Reflow Temperature260℃ 10Sec
