Mini PCI Connector, H=9.2mm

Products > Connectors > PCB Card Socket > Mini PCI Socket > Mini PCI Connector, H=9.2mm

Part number # 114B-92B00-R02

SupplierATTEND Technology
Part number 114B-92B00-R02

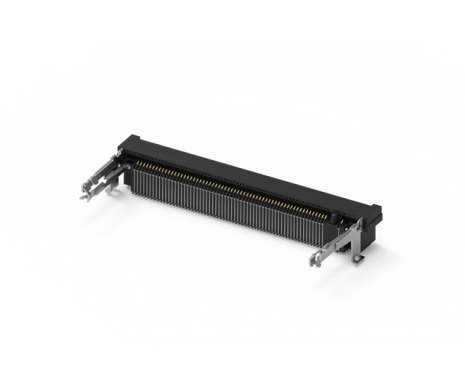

Description Mini PCI Connector, H=9.2mm, Top Mount, SMT Type
Datasheet PDF File (318 KB)
Drawing PDF File (575 KB)
3D RAR File (3077 KB)

Contact us for quote, samples or more information

Contact us
edge Computing

APPLICATION:

  • Box PCs
  • Edge computing
  • Industrial PCs
  • Embedded systems


MAIN FEATURES:

Mini PCI Socket
  • 4.0 mm and 9.2 mm heights available
  • Compatible transfer rate of 133 MB/s for 32-bit, 33 MHz
  • The retention latch is all-in-one on the connector

SPECIFICATION:

Current Rating0.3A Max. per pin
Voltage Rating25V AC
Contact Resistance30MΩ Max.
Insulation Resistance500MΩ Max.
Dielectric Withstanding VoltageMatte Connector: apply 250V AC at 60Hz (rms.)
Contact Normal Force50 gf per pin Min.
Operating temperature range-40°C~+90°C
Storage temperature range– 40°C~+90°C
Recommended IR Reflow Temperature260°C
