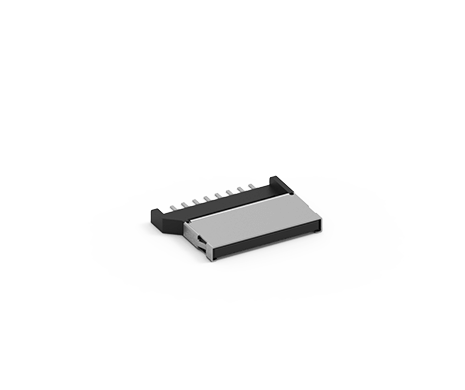

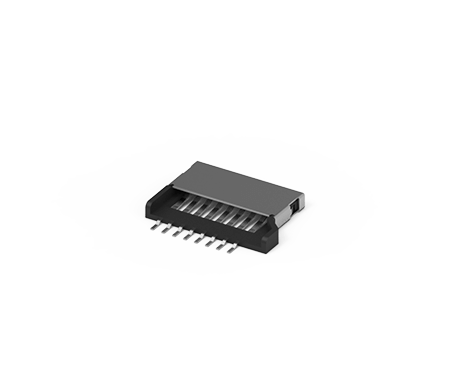

Micro SD Socket, Push-Pull Type, w/o Cover

Products > Connectors > Flash Memory Socket > Micro SD Card Socket > Micro SD Socket, Push-Pull Type, w/o Cover

Part number # 112K-TAA0-RA1

SupplierATTEND Technology
Part number 112K-TAA0-RA1
Description Micro SD Card Socket, Push-Pull Type, Short Profile, GF
Datasheet
Drawing PDF File (206 KB)
3D RAR File (139 KB)

Contact us for quote, samples or more information

Contact us

APPLICATION:

  • Embedded systems
  • Machine vision systems
  • IIoT
  • Infotainment
  • Action Cameras

MAIN FEATURES:

Micro SD Card Socket Main Feature
  • Various types available, including push-push, push-pull, reverse, and hinge
  • Meet SDA standards for known compatibility and reliability
  • Ultra-high-speed interface compatible (UHS-I)
  • Write-protect switch optional
  • Card detection switch optional

SPECIFICATION:

Current Rating0.5A
Voltage Rating100V AC/DC
Contact Resistance50mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VDC
Terminal Durability5,000 Cycle
Insertion Force9.8N max.
Extraction Force9.8N max.
Operating temperature range-40°C~+85°C
Storage temperature range-40°C~+85°C
Recommended IR-Reflow Temperature260°C
