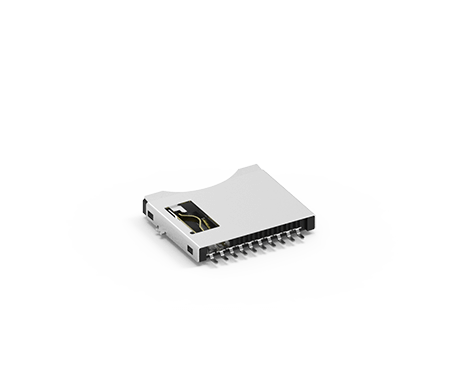

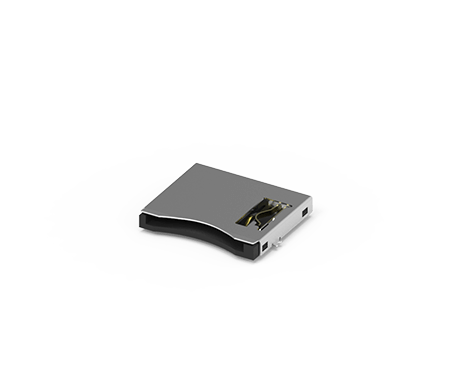

Micro SD socket, Push-Pull Type, w/switch

Products > Connectors > Flash Memory Socket > Micro SD Card Socket > Micro SD socket, Push-Pull Type, w/switch

Part number # 112I-TA01

SupplierATTEND Technology
Part number 112I-TA01
Description Micro SD Card socket, Push-Pull Type, w/card switch, w/Peg
Datasheet PDF File (293 KB)
Drawing PDF File (203 KB)
3D RAR File (182 KB)

Contact us for quote, samples or more information

Contact us

APPLICATION:

  • Embedded systems
  • Machine vision systems
  • IIoT
  • Infotainment
  • Action Cameras

MAIN FEATURES:

Micro SD Card Socket Main Feature
  • Various types available, including push-push, push-pull, reverse, and hinge
  • Meet SDA standards for known compatibility and reliability
  • Ultra-high-speed interface compatible (UHS-I)
  • Write-protect switch optional
  • Card detection switch optional

SPECIFICATION:

Current Rating0.5A
Voltage Rating10V
Contact Resistance40mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage500VAC
Durability10,000 Cycle
Operating temperature range-40°C~+85°C
Storage temperature range– 40°C~+85°C
Recommended IR Reflow Temperature260°C
