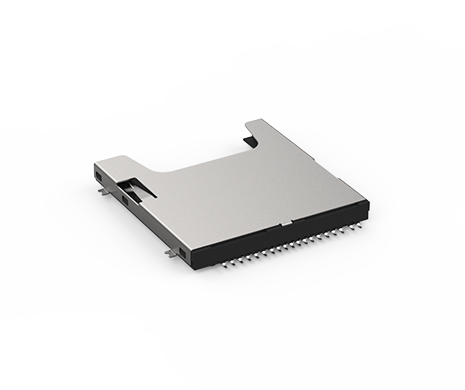

UHS-II SD 4.1 Socket, Push-Push Type

Products > Connectors > Flash Memory Socket > SD Card Socket > UHS-II SD 4.1 Socket, Push-Push Type

Part number # 104I-TA01

SupplierATTEND Technology
Part number 104I-TA01
Description SD 4.1 Socket, UHS-II, Top Mount, Push-Push Type, w/switch/card lock,
G/F SD compliant for UHS-I and UHS-II interface.
Datasheet
Drawing PDF File (169 KB)
3D RAR File (947 KB)

Contact us for quote, samples or more information

Contact us

APPLICATION:

  • Embedded systems
  • Machine vision systems
  • IIoT
  • Infotainment
  • Action Cameras

MAIN FEATURES:

SD Card Socket Main Feature
  • Various types available, including push-push, push-pull, reverse, and hinge
  • Meet SDA standards for known compatibility and reliability
  • Ultra-high-speed interface compatible (UHS-I)
  • Write-protect switch optional
  • Card detection switch optional

SPECIFICATION:

Current Rating1A MAX.
Operating Voltage30V AC/DC
Contact Resistance100mΩ
Insulation Resistance1000MΩ(250VDC)
Dielectric Withstanding Voltage500VAC/ 1mimute
Durability5,000 Cycle by UHS-II SD Card
Operating temperature range-25°C~+85°C
