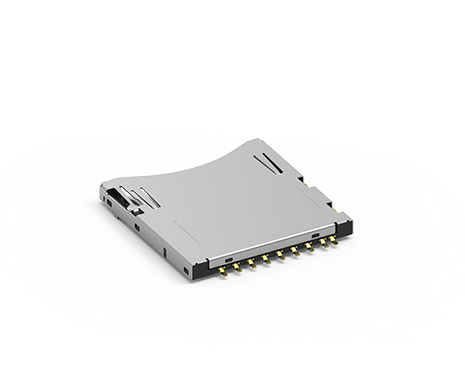

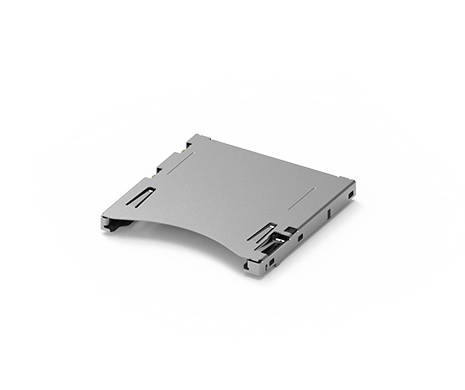

SD Card Socket, Push-Push Type, w/Lock

Products > Connectors > Flash Memory Socket > SD Card Socket > SD Card Socket, Push-Push Type, w/Lock

Part number # 104H-TDA0-R01

SupplierATTEND Technology
Part number 104H-TDA0-R01
Description SD Card Socket, Push-Push Type, with Card Lock, Top Mount, SMT, 10u”
Datasheet PDF File (246 KB)
Drawing PDF File (153 KB)
3D RAR File (636 KB)

Contact us for quote, samples or more information

Contact us

APPLICATION:

  • Embedded systems
  • Machine vision systems
  • IIoT
  • Infotainment
  • Action Cameras

MAIN FEATURES:

SD Card Socket Main Feature
  • Various types available, including push-push, push-pull, reverse, and hinge
  • Meet SDA standards for known compatibility and reliability
  • Ultra-high-speed interface compatible (UHS-I)
  • Write-protect switch optional
  • Card detection switch optional

SPECIFICATION:

InsulatorLCP, UL 94V-0
ContactPhosphor Bronze Alloy
Contact Area10u” Gold Plated, under- plated Ductile Nickel
Solder AreaGold Flash
Contact Area10u” Gold Plating.
Current Rating1 Amps Max.
Insulation Resistance1000 MΩ Min
Rating Current0.5A
Rating Voltage100V AC/DC
