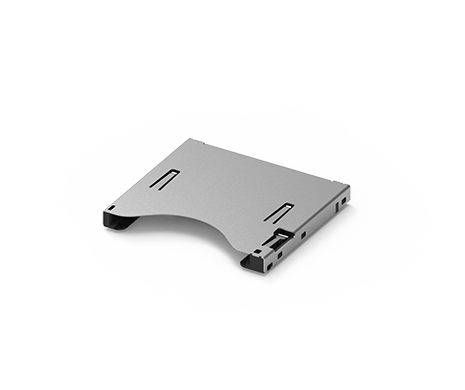

SD Card Socket, Push-Push Type w/switch

Products > Connectors > Flash Memory Socket > SD Card Socket > SD Card Socket, Push-Push Type w/switch

Part number # 104D-TCC0-R06

SupplierATTEND Technology
Part number 104D-TCC0-R06
Description SD Card Socket, Push-Push Type w/switch, Stand off: 1.8mm, 10u”
Datasheet
Drawing PDF File (128 KB)
3D

Contact us for quote, samples or more information

Contact us

APPLICATION:

  • Embedded systems
  • Machine vision systems
  • IIoT
  • Infotainment
  • Action Cameras

MAIN FEATURES:

SD Card Socket Main Feature
  • Various types available, including push-push, push-pull, reverse, and hinge
  • Meet SDA standards for known compatibility and reliability
  • Ultra-high-speed interface compatible (UHS-I)
  • Write-protect switch optional
  • Card detection switch optional

SPECIFICATION:

Current Rating0.5A per pin
Voltage Rating100V AC/DC
Contact Resistance80mΩ
Insulation Resistance1000MΩ Min.
Dielectric Withstanding Voltage500VAC
Durability10,000 Cycles
Card Insertion / Eject Force9.8N Max.
Operating temperature range-25℃~+90℃
Storage temperature range-40℃~+90℃
Recommended IR Reflow Temperature260℃ 10Sec
