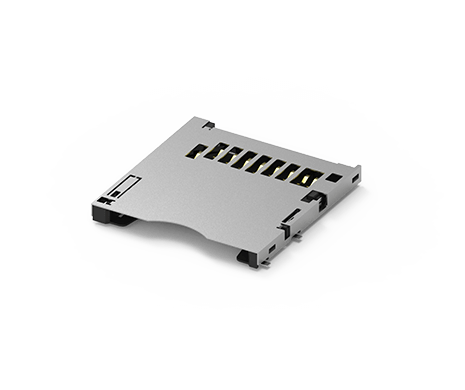

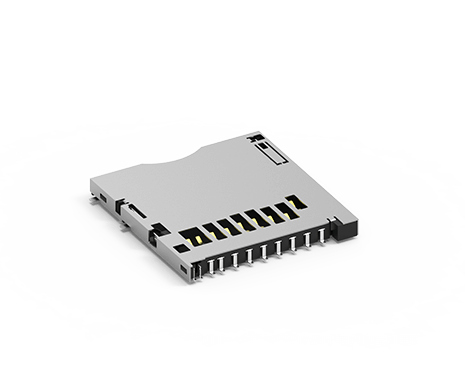

SD Card Socket, Reverse Push-Push Type, w/switch

Products > Connectors > Flash Memory Socket > SD Card Socket > SD Card Socket, Reverse Push-Push Type, w/switch

Part number # 104D-RCA0-RA1

SupplierATTEND Technology
Part number 104D-RCA0-RA1
Description SD Card Socket, Reverse Push-Push Type w/switch, 5u”
Datasheet PDF File (340 KB)
Drawing PDF File (352 KB)
3D RAR File (574 KB)

Contact us for quote, samples or more information

Contact us

APPLICATION:

  • Embedded systems
  • Machine vision systems
  • IIoT
  • Infotainment
  • Action Cameras

MAIN FEATURES:

SD Card Socket Main Feature
  • Various types available, including push-push, push-pull, reverse, and hinge
  • Meet SDA standards for known compatibility and reliability
  • Ultra-high-speed interface compatible (UHS-I)
  • Write-protect switch optional
  • Card detection switch optional

SPECIFICATION:

Current Rating0.5A MAX.
Voltage Rating100V AC
Contact Resistance100mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500V AC
Contact Retention Force0.25kgf Min.
Insertion Force4.2kgf Max.
Withdrawal Force0.21kgf Min.
Durability5,000 Cycles
Operating temperature range-20℃~+85℃
